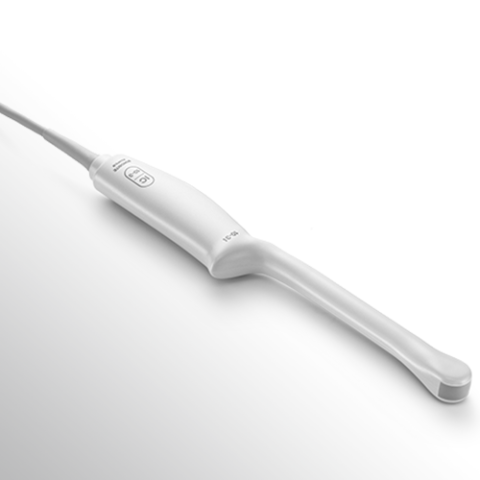

(US MT) TRANSDUCER IC 10-3, armored cable, P23121
Valid Article
OC subscriptions: included in supply or field order tools (e.g. UniField)
|
|
SC subscriptions: included in supply or field tools
|
|
OC validations: approved for procurement and use by an OC for international or local orders specifying context and activity in Medical Standard Lists (MSL)
|
|
(ultrasound Sonosite MT) PROBES
Definition
A hand-held noninvasive component of an ultrasound imaging assembly designed to be moved over the intact surface of a patient's body, typically with a coupling gel, during a variety of extracorporeal ultrasound imaging procedures (non-dedicated).
Sometimes referred to as an ultrasound probe, it converts electric voltages into ultrasound which it transmits, detects resulting echoes, and transmits a proportional signal/data to an ultrasound system controller for image processing and display. This is a reusable device.
Specifications
Quality standards
Components
- Transducers with armored cables
- L12-3 ref. P22916
- C5-1 ref. 23119
- P5-1 ref. P24087
- IC10-3 ref. P23121
Technical specifications
Broadband and Multifrequency probe:
- Armored Cable Technology (on L12-3, C5-1, P5-1 & IC10-3)
- Linear Array, Curved Array, Phased Array
- Center line marker for linear transducers
Armored cables with an embedded metal jacket, protect your transducers by safeguarding electrical connections inside.
Having the correct transducer(s) available is CRUCIAL for performing Ultrasound examinations.
Additional transducers are most likely required.
Transducer needs vary by project site. To order the most suitable transducers for your site, please contact POCUS@msf.org or the POCUS advisor for your section for further advice.
Consider ordering a backup of the transducer the project uses most frequently.
SonoSite Code MSF code | Application | Band With |
| |
L12-3 EDIMULSA1701 | "Linear”: Lung, MSK, superficial structures | 12-3 MHz | 6 cm | |
C5-1 EDIMULSA1702 | "Curved”: General abdominal | 5-1 MHz | 30 cm | |
P5-1 EDIMULSA1703 | “Cardiac”: Cardiac, Paediatrics incl. abdomen and cranial “Quick scan” for Trauma Emergencies | 5-1 MHz | 35 cm | |
| Non-standard Item transducer – consult with the POCUS team prior to ordering! | ||||
IC 10-3 EDIMULSA1708 | *“Trans-Vaginal”: 1 st trimester or advanced OB/GYN; not required for basic 2nd/3rd trimester OB | 10-3 MHz | 13 cm | |
| TTC EDIMULSA1709 | Triple Transducer Connect | Fits on MT Stand, allows all 3 transducers to be plugged in at once, and changed with the touch of a button **only fits MT Stand | ||
Each additional transducer costs approx. €3-4k.
* TV transducer: Specific training, transducer cover and strict disinfection protocols are required when using this transducer!
**The triple transducer connect will only fit the Sonosite MT specific stand. It will not fit or function with Edge-2 or M-turbo
To be Ordered Separately
Recommended additional orders
MSF code | Item | Notes |
EDIMULSC1CA* | Ultrasound Gel, 250 ml bot.) | Consumption: 1 bottle = 10 exams, order min 40/month |
SDISSUQA2B-** | Detergent/Disinfectant – Surfanios | Concentrated solution to be |
*Ultrasound exams are not possible without gel! Please order months in advance, and recommend ordering more than necessary until exact usage/month is well known. This gel has a long shelf-life with no temperature requirements. NEVER use alcohol or oil based products (Sterilium, povidone-iodine, alcohol gel, gel cleansers) as these may damage the transducer. Sterile lubrication or plain WATER may be used as alternatives.
**Only 0.5% Anios Clean diluted solution, made fresh daily, should be used to clean transducers. This is required after EVERY patient exam. NEVER use alcohol or oil based products (Sterilium, povidone-iodine, alcohol gel, gel cleansers) as these may damage the transducer.
Instructions for use
If gel is not readily available, it can be replaced with water. Never use alcohol, oil or any other fluids as they can damage the transducer.
If a patient shows infectious lesions, the end of the transducer must be covered with a male condom or glove during the examination.
For advanced obstetric applications, a vaginal transducer (ICT x/ 8-5MHz) can be ordered separately (see accessories). This transducer is intended for trained and experienced users. It must always be used with a male condom.
Maintenance
The transducer is not autoclavable.
After each examination, it must be cleaned and disinfected with a 0.5% detergent-disinfectant solution for medical equipment (either 25 ml = 1 stroke of dosing pump for 5 liters of water).
Storage
- Temperature between +10°C and +40°C
- Relative humidity: 15 - 95 %
- Atmospheric pressure: 700 - 1050 hPa
MSF requirements
5-year warranty on ultrasound system and transducers and excellent technical and customer service support from Sonosite
