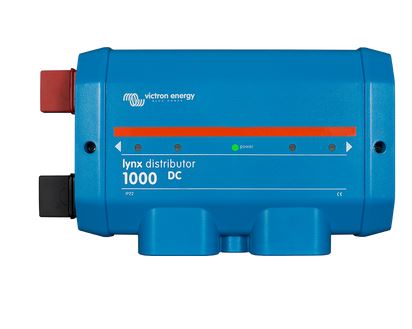

(Victron inverter) FUSE BOX (Victron Lynx Distributor)

Form

DC fuse box / busbar distributor

  • supported system voltage: 12 / 24 / 48 VDC (9–60 VDC operating range)
  • continuous current rating: 1000 ADC
  • positive busbar: 4 fused connections (MEGA fuse type)
  • negative busbar: 4 connections + ground connection
  • busbar material: tinned copper (8 × 30 mm)
  • busbar connection version: M8 or M10 (module interconnection); fuse & cable connections always M8
  • enclosure material: ABS
  • IP protection: IP22
  • communication & power: RJ10 (40 cm cable included)
  • power consumption: max. 100 mA (all LEDs illuminated)
  • dimensions: 290 × 170 × 80 mm
  • weight: 2.2 kg

Includes:

  • 1 × Lynx Distributor
  • 1 × 40 cm RJ10 cable

Per piece.

Fit

Application: DC distribution and fused protection in battery systems

System integration:

  • part of Victron Lynx modular distribution system
  • compatible with Lynx Smart BMS or Lynx Shunt VE.Can
  • up to 4 Lynx Distributors supported when connected to Lynx Smart BMS
  • fuse monitoring via RJ10 communication

Fusing requirements:

  • designed for MEGA fuses
  • 36 V-rated MEGA fuses for 12/24 V systems
  • 58 V-rated MEGA fuses for 48 V systems
  • total fuse ratings must not exceed 1000 A

Installation notes:

  • modular left/right interconnection
  • DIP switch addressing A–D (when multiple units used)
  • tightening torque: M8 → 14 Nm / M10 → 33 Nm
  • single system ground connection recommended

Function

Provides centralized DC busbar distribution with individual fuse protection and monitoring.

Operational features:

  • individual fuse status detection (blown fuse threshold > 0.5 V across fuse)
  • LED indication:
    • green → normal operation
    • red → blown fuse
    • yellow → busbar unpowered

  • remote monitoring via VictronConnect App, GX device and VRM portal (when connected to Lynx Smart BMS)

System role:

  • distributes battery power to inverters, chargers and DC loads
  • protects up to 4 independent DC circuits
  • suitable for high-current systems up to 1000 ADC continuous
